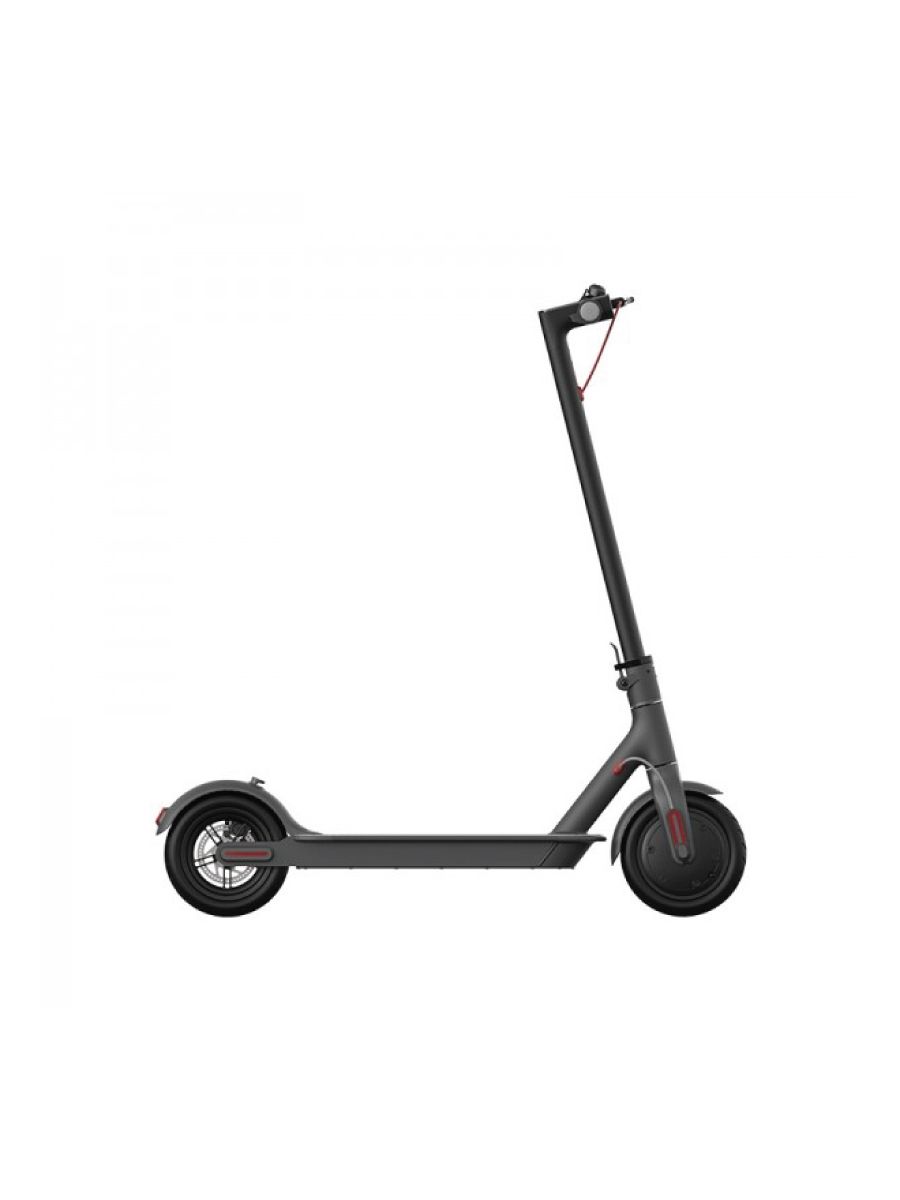

Product model number: DDHBC05NEB
Max. speed: 25km/h (Max speed for each mode: Pedestrian mode: 5km/h; D: 20km/h; S: 25km/h)
Range: 30km
Weight: 12.5kg
Gradeability: 14%
Braking: E-ABS and disc brake
Rated power: 250W
Max. power: 500W
Tires: 8.5" front and rear pneumatic tires
Controller undervoltage protection: 29V±0.5V
Controller current limit: 17A±0.5A
Motor type: Brushless DC motor
Max. load: 100kg
Rider height: 120cm-200cm
Rider age: Age 16-50
Working temperature: -10°C to 40°C
Storage temperature: -20°C to 45°C
IP-rating: IP54
Charging time: 5.5 hours
Battery specs
Battery type: Lithium ion battery
Battery model: NE1003-H
Rated capacity: 7650mAh/275Wh
Rated voltage: 36VDC
Maximum charging voltage: 42VDC
Charging temperature range: 0°C~+40°C
Discharge temperature range: -20°C~+50°C
Battery weight: 1.6kg
Cyclical lifetime: 500 charging cycles with power maintained above 70%
Adapter specs
Output power: 71W
Input current: 2A MAX
Output current: 1.7A
Input voltage: 100-240VAC 50/60Hz
Output voltage: 42V
DC cable length: 2m
DC cable port type: Custom Φ8.0*1.6mm
