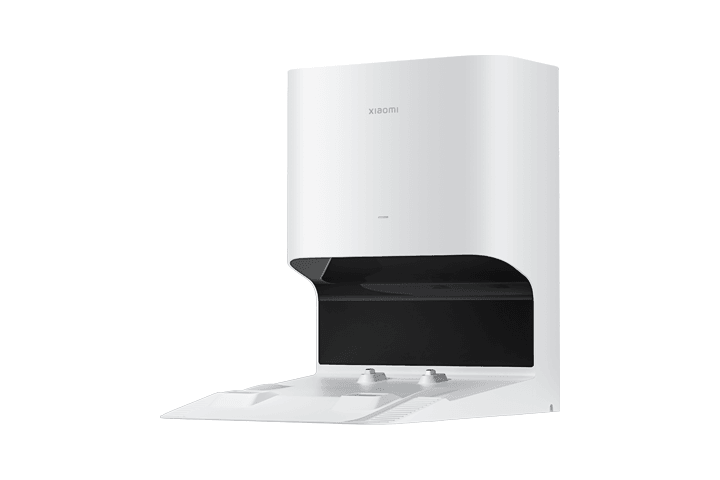

Auto-empty Station:
Item Dimensions: 397 × 285 × 384 mm
Rated Input: 220–240 V ~ 50/60 Hz
Rated Output: 20.0 V 1 A
Rated Power: 1000 W

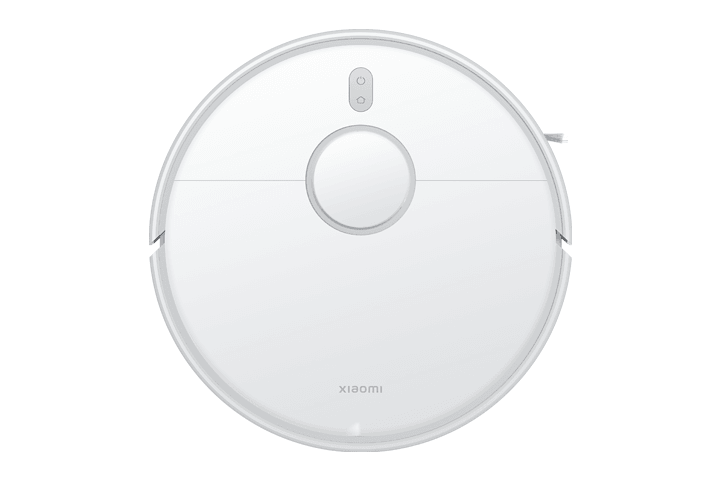

Robot Vacuum:
Item Dimensions 353 × 350 × 98.8 mm
Battery:
4800 mAh (Rated Capacity)
5200 mAh (Nominal Capacity)
Charging Time: Approx. 6 hours
Net Weight: (Robot Vacuum) 3.3 kg
Net Weight: (with Accessories) 7.4 kg
Rated Voltage: 14.4 V
Rated Power: 46 W
Sensor list:
LDS laser sensor:
Distancing and mapping (360°, white material 0.1–6m, black material 0.1–4m)
IMU sensor:
Motion status detection (Acceleration ranges ±2g/±4g/±8g/±16g; Gyroscope ranges from ±125°/s to ±200°/s)
Drop sensor:
Detects steps and drops (Black/grey carpet >15mm; light grey tile >45mm; pure white >80mm)
Wheel suspension detection:
Detects if the vacuum-mop is suspended (0&1)
Infrared sensor:
Communication between the vacuum-mop and base (<10cm)
Infrared sensor:
Vacuum-mop and charging dock positioning (<5m)
Air pressure sensor:
Tests for dust collection capacity and blocked ducts (300–1250hPa)
Hall sensor:
Tests whether dustbin, water tank and cloth are installed (Operating Point ±37Gs; Releasing Point ±25Gs)
|
